MTM系列PCB安裝超緊湊型高壓電源模塊SDS High Voltage

發布時間：2025-07-11 09:03:53     瀏覽：448

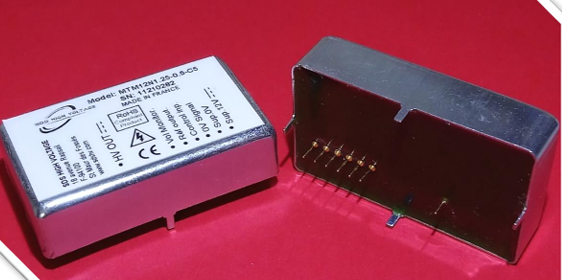

MTM系列PCB安裝超緊湊型高壓電源模塊SDS High Voltage

MTM系列PCB安裝超緊湊型高壓電源模塊SDS High Voltage

輸入電壓：12V ±0.5V / 15V ±0.5V / 24V ±1V

　　輸出電壓范圍：0–600V / 0–1kV / 0–1.25kV / 0–1.5kV

　　輸出功率：0.5W / 0.8W / 1W(取決于型號)

　　輸出電流：視型號而定，詳見選型表

　　電壓調節方式：外部電位器(≥10kΩ)或外部電壓(0–5V 或 0–10V)

　　電壓精度：±0.2%(最大電壓時)

　　負載/線性調節率：±0.01%

　　紋波：10–40mV(滿載時)

　　溫度系數：100ppm/°C(0–50°C)

　　工作溫度范圍：-40°C 至 +50°C

　　尺寸：46.0 × 12.0 × 24.6 mm

　　重量：約 35g

　　安裝方式：PCB 安裝，4 個安裝片

　　輸出方式：標準引腳輸出或可選飛線(50cm，直徑 2mm)

　　存儲溫度范圍：-40°C 至 +70°C

MTM series selection guide
#Obsolete referenceCurrent referenceVoutPola-lout/PoutVinControlOtption
systemsystemrity
#1MT12N601831-5FMTM12NO.6-0.5-C5600V-0.83mA/0.5W12V5VPin
#2MT12N601831-10FMTM12NO.6-0.5-C10-10VPin
#3MT12N601831-5F-WMTM12NO.6-0.5-C5-L
5VWire
#4MT12N601831-10F-WMTM12NO.6-0.5-C10-L-10VWire
#5MT12P601831-5FMTM12P0.6-0.5-C5+5VPin
#6MT12P601831-10FMTM12P0.6-0.5-C10+10VPin
#7MT12P601831-5F-WMTM12P0.6-0.5-C5-L+5VWire
#8MT12P601831-10F-WMTM12P0.6-0.5-C10-L+10VWire
#9MT15N601132-5FMTM15NO.6-0.8-C5
1.33mA/0.8W15V5VPin
#10MT15N601132-10FMTM15N0.6-0.8-C10
10VPin
#11MT15N601132-5F-WMTM15N0.6-0.8-C5-L600V-1.33mA/0.8W15V5VWire
#12MT15N601132-C10WMTM15NO.6-0.8-C10-Lcont'd-cont'd10VWire
#13MT15P601132-5FMTM15P0.6-0.8-C5
+
5VPin
#14MT15P601132-10FMTM15P0.6-0.8-C10
+
10VPin
#15MT15P601132-5F-WMTM15P0.6-0.8-C5-L
+
5VWire
#16MT15P601132-10F-WMTM15P0.6-0.8-C10-L
+
10VWire
#17MT24N601167-5FMTM24NO.6-1-C5

1.67mA/1.0W24V5VPin
#18MT24N601167-10FMTM24NO.6-1-C10

10VPin
#19MT24N601167-5F-WMTM24N0.6-1-C5-L
-5VWire
#20MT24N601167-10F-WMTM24NO.6-1-C10-L
-10VWire
#21MT24P601167-5FMTM24P0.6-1-C5
+5VPin
#22MT24P601167-10FMTM24P0.6-1-C10
+10VPin
#23MT24P601167-5F-WMTM24P0.6-1-C5-L
+5VWire
#24MT24P601167-10F-WMTM24P0.6-1-C10-L
+10VWire
#25MT12N102501-5FMTM12N1-0.5-C51000V-0.50mA/0.5W12V5VPin
#26MT12N102501-10FMTM12N1-0.5-C10-10VPin
#27MT12N102501-5F-WMTM12N1-0.5-C5-L-5VWire
#28MT12N102501-10F-WMTM12N1-0.5-C10-L-10VWire
#29MT12P102501-5FMTM12P1-0.5-C5+5VPin
#30MT12P102501-10FMTM12P1-0.5-C10+10VPin
#31MT12P102501-5F-WMTM12P1-0.5-C5-L+5VWire
#32MT12P102501-10F-WMTM12P1-0.5-C10-L+10VWire
#33MT15N102801-5FMTM15N1-0.8-C5
0.80mA/0.8W15V5VPin
#34MT15N102801-10FMTM15N1-0.8-C10
10VPin
#35MT15N102801-5F-WMTM15N1-0.8-C5-L
5VWire
#36MT15N102801-10F-WMTM15N1-0.8-C10-L-10VWire
#37MT15P102801-5FMTM15P1-0.8-C5+5VPin
#38MT15P102801-10FMTM15P1-0.8-C10+10VPin
#39MT15P102801-5F-WMTM15P1-0.8-C5-L+5VWire
#40MT15P102801-10F-WMTM15P1-0.8-C10-L+10VWire
#41MT24N102102-5FMTM24N1-1-C5-1.00mA/1.0W24V5VPin
#42MT24N102102-10FMTM24N1-1-C10-10VPin
#43MT24N102102-5F-WMTM24N1-1-C5-L
5VWire
#44MT24N102102-10F-WMTM24N1-1-C10-L
10VWire
#45MT24P102102-5FMTM24P1-1-C5+5VPin
#46MT24P102102-10FMTM24P1-1-C10+10VPin
#47MT24P102102-5F-WMTM24P1-1-C5-L+5VWire
#48MT24P102102-10F-WMTM24P1-1-C10-L+10VWire
#49MT12N122401-5FMTM12N1.25-0.5-C51250V-0.4mA/0.5W12V5VPin
#50MT12N122401-10日MTM12N1.25-0.5-C10
10VPin
#51MT12N122401-5F-WMTM12N1.25-0.5-C5-L
5VWire
#52MT12N122401-10F-WMTM12N1.25-0.5-C10-L1250V-0.4mA/0.5W12V10VWire
#53MT12P122401-5FMTM12P1.25-0.5-C5cont'd+Cont'dCont'd5VPin
#54MT12P122401-10FMTM12P1.25-0.5-C10
+

10VPin
#55MT12P122401-5F-WMTM12P1.25-0.5-C5-L
+

5VWire
#56MT12P122401-10F-WMTM12P1.25-0.5-C10-L
+

10VWire
#57MT15N122641-5FMTM15N1.25-0.8-C5
-0.64mA/0.8W15V5VPin
#58MT15N122641-10FMTM15N1.25-0.8-C10
-10VPin
#59MT15N122641-5F-WMTM15N1.25-0.8-C5-L

5VWire
#60MT15N122641-10F-WMTM15N1.25-0.8-C10-L
-10VWire
#61MT15P122641-5FMTM15P1.25-0.8-C5
+5VPin
#62MT15P122641-10FMTM15P1.25-0.8-C10
+10VPin
#63MT15P122641-5F-WMTM15P1.25-0.8-C5-L
+5VWire
#64MT15P122641-10F-WMTM15P1.25-0.8-C10-L
+10VWire
#65MT24N122801-5FMTM24N1.25-1-C5

0.80mA/1.0W24V5VPin
#66MT24N122801-10FMTM24N1.25-1-C10

10VPin
#67MT24N122801-5F-WMTM24N1.25-1-C5-L

5VWire
#68MT24N122801-10F-WMTM24N1.25-1-C10-L
-10VWire
#69MT24P122801-5FMTM24P1.25-1-C5
+5VPin
#70MT24P122801-10FMTM24P1.25-1-C10
+10VPin
#71MT24P122801-5F-WMTM24P1.25-1-C5-L
+5VWire
#72MT24P122801-10F-WMTM24P1.25-1-C10-L
+10VWire
#73MT12N152331-5FMTM12N1.5-0.5-C51500V-0.33mA/0.5W12V5VPin
#74MT12N152331-10FMTM12N1.5-0.5-C10
10VPin
#75MT12N152331-5F-WMTM12N1.5-0.5-C5-L-5VWire
#76MT12N152331-10F-WMTM12N1.5-0.5-C10-L
10VWire
#77MT12P152331-5FMTM12P1.5-0.5-C5+5VPin
#78MT12P152331-10FMTM12P1.5-0.5-C10+10VPin
#79MT12P152331-5F-WMTM12P1.5-0.5-C5-L+5VWire
#80MT12P152331-10F-WMTM12P1.5-0.5-C10-L+10VWire
#81MT15N152531-5FMTM15N1.5-0.8-C5-5VPin
#82MT15N152531-10FMTM15N1.5-0.8-C10
0.53mA/0.8W15V5VPin
#83MT15N152531-5F-WMTM15N1.5-0.8-C5-L-10VWire
#84MT15N152531-10F-WMTM15N1.5-0.8-C10-L-5VWire
#85MT15P152531-C5MTM15P1.5-0.8-C5+10VPin
#86MT15P152531-C10MTM15P1.5-0.8-C10+5VPin
#87MT15P152531-5F-WMTM15P1.5-0.8-C5-L+10VWire
#88MT15P152531-10F-WMTM15P1.5-0.8-C10-L+5VWire
#89MT24N152671-5FMTM24N1.5-1-C5-0.97mA/1.0W24V5Vpin
#90MT24N152671-10FMTM24N1.5-1-C10-10VPin
#91MT24N152671-5F-WMTM24N1.5-1-C5-L-5VWire
#92MT24N152671-10F-WMTM24N1.5-1-C10-L-10VWire
#93MT24P152671-5FMTM24P1.5-1-C51500V+0.97mA/1.0W24V5Vpin
#94MT24P152671-10FMTM24P1.5-1-C10cont'd+cont'dcont'd10VPin
#95MT24P152671-5F-WMTM24P1.5-1-C5-L
+

5VWire
#96MT24P152671-10F-WMTM24P1.5-1-C10-L
+

10VWire

深圳市立維創展科技有限公司優勢代理銷售SDS High Voltage高壓電源模塊產品線，歡迎咨詢了解。
